Globe Valve
Cast Stainless Steel & Carbon Steel
Size 2” - 18”, Class 150 - 2500
Design & Manufacturing Standards
- Basic Design API 600 & ANSI/ASME B 16.34
- Shell Wall Thickness API 600
- Face to Face Dimension ANSI/ASNE B16.10
- Flange End Dimension ANSI/ASME B16.5
- Butt-Weld End Dimension ANSI/ASME B16.25
- Inspection & Testing API 598
Expanded View & Bill Materials | Globe Valve Dimension
Globe Valve Dimensions
A1 (Raised Face - RF)
A2 (RTJ)

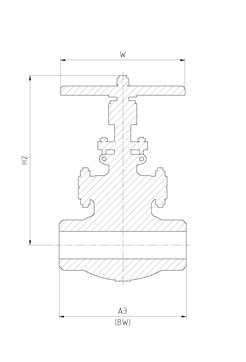

A3 (Buttwelding End - BW)
A4 (Socket Welding - SW)
Class 150
Class 300
Class 600
Class 900
Class 1500
Class 2500
Class 150
| VALVE SIZE | A1 (RF) | A2 (RTJ) | A3 (BW) | A4 (SW) | H2 | W | L | ||||||||
| NPS | DN | In | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm |
| 2 | 50 | 8.00 | 203 | 8.5 | 216 | 8.00 | 203 | 8.00 | 203 | 15.3 | 388 | 7.9 | 200 | – | – |
| 2.5 | 65 | 8.50 | 216 | 9.0 | 229 | 8.50 | 216 | 8.50 | 216 | 14.8 | 376 | 8.8 | 224 | – | – |
| 3 | 80 | 9.50 | 241 | 10 | 254 | 9.50 | 241 | 9.50 | 241 | 17.0 | 433 | 8.8 | 224 | – | – |
| 4 | 100 | 11.50 | 292 | 12.0 | 305 | 11.50 | 292 | 11.50 | 292 | 19.5 | 495 | 9.8 | 250 | – | – |
| 6 | 150 | 16.00 | 406 | 16.5 | 419 | 16.00 | 406 | 16.00 | 406 | 22.6 | 574 | 14.0 | 355 | – | – |
| 8 | 200 | 19.50 | 495 | 20 | 508 | 19.50 | 495 | 19.50 | 495 | 28.0 | 710 | 14.0 | 355 | – | – |
| 10 | 250 | 24.50 | 622 | 25 | 635 | 24.50 | 622 | 24.50 | 622 | 31.4 | 797 | 17.7 | 450 | – | – |
| 12 | 300 | 27.50 | 698 | 28.0 | 711 | 27.50 | 698 | 27.50 | 698 | 39.1 | 993 | 17.7 | 450 | – | – |
| 14 | 350 | 31.00 | 787 | 31.5 | 800 | 31.00 | 787 | 31.00 | 787 | 54.6 | 1387 | 22.0 | 560 | 16.3 | 414 |
| 16 | 400 | 36.00 | 914 | 36.5 | 927 | 36.00 | 914 | 36.00 | 914 | 53.4 | 1356 | 22.0 | 560 | 16.3 | 414 |
| 18 | 450 | 38.50 | 978 | 39.0 | 991 | 38.50 | 978 | 38.50 | 978 | 78.0 | 1980 | 24.0 | 610 | 17.0 | 432 |
Class 300
| VALVE SIZE | A1 (RF) | A2 (RTJ) | A3 (BW) | A4 (SW) | H2 | W | L | ||||||||
| NPS | DN | In | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm |
| 2 | 50 | 10.50 | 267 | 11.12 | 283 | 10.50 | 267 | 10.50 | 267 | 15.6 | 396 | 7.9 | 200 | – | – |
| 2.5 | 65 | 11.50 | 292 | 12.12 | 308 | 11.50 | 292 | 11.50 | 292 | 16.3 | 415 | 8.8 | 224 | – | – |
| 3 | 80 | 12.50 | 318 | 13.12 | 333 | 12.50 | 318 | 12.50 | 318 | 18.2 | 462 | 9.8 | 250 | – | – |
| 4 | 100 | 14.00 | 356 | 14.62 | 371 | 14.00 | 356 | 14.00 | 356 | 21.7 | 550 | 14.0 | 355 | – | – |
| 6 | 150 | 17.50 | 444 | 18.12 | 460 | 17.50 | 444 | 17.50 | 444 | 29.2 | 741 | 17.7 | 450 | – | – |
| 8 | 200 | 22.00 | 559 | 22.62 | 575 | 22.00 | 559 | 22.00 | 559 | 31.5 | 800 | 22.0 | 560 | – | – |
| 10 | 250 | 24.50 | 622 | 25.12 | 638 | 24.50 | 622 | 24.50 | 622 | 44.6 | 1132 | 22.0 | 560 | 16.3 | 414 |
| 12 | 300 | 28.00 | 711 | 28.62 | 727 | 28.00 | 711 | 28.00 | 711 | 46.1 | 1172 | 28.0 | 710 | 18.4 | 468 |
Class 600
| VALVE SIZE | A1 (RF) | A2 (RTJ) | A3 (BW) | A4 (SW) | H2 | W | L | ||||||||
| NPS | DN | In | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm |
| 2 | 50 | 11.50 | 292 | 11.62 | 295 | 11.50 | 292 | 11.50 | 292 | 16.0 | 407 | 8.8 | 224 | – | – |
| 2.5 | 65 | 13.00 | 330 | 13.12 | 333 | 13.00 | 330 | 13.00 | 330 | 19.8 | 502 | 9.8 | 250 | – | – |
| 3 | 80 | 14.00 | 356 | 14.12 | 359 | 14.00 | 356 | 14.00 | 356 | 19.9 | 505 | 11.0 | 280 | – | – |
| 4 | 100 | 17.00 | 432 | 17.12 | 435 | 17.00 | 432 | 17.00 | 432 | 22.4 | 568 | 14.0 | 355 | – | – |
| 6 | 150 | 22.00 | 559 | 22.12 | 562 | 22.00 | 559 | 22.00 | 559 | 29.9 | 759 | 17.1 | 450 | – | – |
| 8 | 200 | 26.00 | 660 | 26.12 | 663 | 26.00 | 660 | 26.00 | 660 | 51.8 | 1315 | 28.0 | 710 | 18.4 | 468 |
| 10 | 250 | 31.00 | 787 | 31.12 | 790 | 31.00 | 787 | 31.00 | 787 | 59.0 | 1511 | 31.5 | 800 | 20.7 | 626 |
| 12 | 300 | 33.00 | 838 | 33.12 | 841 | 33.00 | 838 | 33.00 | 838 | 96.9 | 1775 | 35.4 | 900 | 26.4 | 670 |
| 14 | 350 | 35.00 | 889 | 35.12 | 892 | 35.00 | 889 | 35.00 | 889 | 70.9 | 1800 | 35.4 | 900 | 26.4 | 670 |
| 16 | 400 | 39.00 | 991 | 39.12 | 994 | 39.00 | 991 | 39.00 | 991 | 76.0 | 1930 | 35.4 | 900 | 26.4 | 670 |
Class 900
| VALVE SIZE | A1 (RF) | A2 (RTJ) | A3 (BW) | A4 (SW) | H2 | W | L | ||||||||
| NPS | DN | In | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm |
| 2 | 50 | 14.50 | 368 | 14.62 | 371 | 14.50 | 368 | 14.50 | 368 | 27.4 | 695 | 15.7 | 400 | – | – |
| 2.5 | 65 | 16.50 | 419 | 16.62 | 422 | 16.50 | 419 | 16.50 | 419 | 27.3 | 695 | 15.7 | 400 | – | – |
| 3 | 80 | 15.00 | 381 | 15.12 | 384 | 15.00 | 381 | 15.00 | 381 | 30.5 | 775 | 15.7 | 400 | – | – |
| 4 | 100 | 18.00 | 457 | 18.12 | 460 | 18.00 | 457 | 18.00 | 457 | 33.7 | 855 | 15.7 | 400 | – | – |
| 6 | 150 | 24.00 | 610 | 24.12 | 613 | 24.00 | 610 | 24.00 | 610 | 50.7 | 1288 | 22.0 | 560 | 16.3 | 414 |
| 8 | 200 | 29.00 | 737 | 29.12 | 740 | 29.00 | 737 | 29.00 | 737 | 65.6 | 1665 | 31.5 | 800 | 20.7 | 526 |
| 10 | 250 | 33.00 | 838 | 33.12 | 841 | 33.00 | 838 | 33.00 | 838 | 63.0 | 1600 | 31.5 | 800 | 20.7 | 526 |
| 12 | 300 | 38.00 | 965 | 38.12 | 968 | 38.00 | 965 | 38.00 | 965 | 67.1 | 1705 | 35.4 | 900 | 26.4 | 670 |
| 14 | 350 | 40.50 | 1029 | 40.88 | 1039 | 40.50 | 1029 | 40.50 | 1029 | 87.0 | 2210 | 35.4 | 900 | 26.4 | 670 |
| 16 | 400 | 44.50 | 1130 | 44.88 | 1140 | 44.50 | 1130 | 44.50 | 1130 | 103.1 | 2620 | 35.4 | 900 | 26.4 | 670 |
Class 1500
| VALVE SIZE | A1 (RF) | A2 (RTJ) | A3 (BW) | A4 (SW) | H2 | W | L | ||||||||
| NPS | DN | In | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm |
| 2 | 50 | 14.50 | 368 | 14.62 | 371 | 14.50 | 368 | 14.50 | 368 | 27.4 | 695 | 15.7 | 400 | – | – |
| 2.5 | 65 | 16.50 | 419 | 16.62 | 422 | 16.50 | 419 | 16.50 | 419 | 27.3 | 695 | 15.7 | 400 | – | – |
| 3 | 80 | 18.50 | 470 | 18.62 | 473 | 18.50 | 470 | 18.50 | 470 | 31.5 | 799 | 19.7 | 500 | – | – |
| 4 | 100 | 21.50 | 546 | 21.62 | 549 | 21.50 | 546 | 21.50 | 546 | 40.0 | 1015 | 19.7 | 500 | – | – |
| 6 | 150 | 27.75 | 705 | 28.00 | 711 | 27.75 | 705 | 27.75 | 705 | 53.0 | 1345 | 28.0 | 710 | 18.4 | 468 |
| 8 | 200 | 32.75 | 832 | 33.13 | 842 | 32.75 | 832 | 32.75 | 832 | 77.2 | 1960 | 28.0 | 710 | 18.4 | 468 |
| 10 | 250 | 39.00 | 991 | 39.38 | 1001 | 39.00 | 991 | 39.00 | 991 | 91.0 | 2310 | 30.0 | 760 | 20.2 | 512 |
| 12 | 300 | 44.50 | 1130 | 45.12 | 1046 | 44.50 | 1130 | 44.50 | 1130 | 105.1 | 2670 | 30.0 | 760 | 20.2 | 512 |
| 14 | 350 | 49.50 | 1257 | 50.25 | 1276 | 49.50 | 1257 | 49.50 | 1257 | 126.0 | 3200 | 30.0 | 760 | 22.23 | 567 |
| 16 | 400 | 54.50 | 1384 | 55.35 | 1406 | 54.50 | 1384 | 54.50 | 1384 | 160.0 | 4064 | 30.0 | 760 | 22.23 | 567 |
Class 2500
| VALVE SIZE | A1 (RF) | A2 (RTJ) | A3 (BW) | A4 (SW) | H2 | W | L | ||||||||
| NPS | DN | In | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm |
| 2 | 50 | 17.75 | 451 | 17.87 | 454 | 17.75 | 451 | 17.75 | 451 | 28.3 | 720 | 15.7 | 400 | – | – |
| 2.5 | 65 | 20.00 | 508 | 20.25 | 514 | 20.00 | 508 | 20.00 | 508 | 31.5 | 800 | 19.7 | 500 | – | – |
| 3 | 80 | 22.75 | 578 | 23.00 | 584 | 22.75 | 578 | 22.75 | 578 | 34.8 | 885 | 19.7 | 500 | – | – |
| 4 | 100 | 26.50 | 673 | 26.88 | 683 | 26.50 | 673 | 26.50 | 673 | 50.0 | 1260 | 24.0 | 610 | 20.2 | 512 |
| 6 | 150 | 36.00 | 914 | 36.50 | 927 | 36.00 | 914 | 36.00 | 914 | 75.0 | 1905 | 24.0 | 610 | 17.0 | 432 |
| 8 | 200 | 40.25 | 1022 | 40.87 | 1038 | 40.25 | 1022 | 40.25 | 1022 | 97.0 | 2465 | 30.0 | 760 | 22.3 | 567 |
| 10 | 250 | 50.00 | 1270 | 50.88 | 1292 | 50.00 | 1270 | 50.00 | 1270 | 110.2 | 2800 | 30.0 | 760 | 22.3 | 567 |
| 12 | 300 | 56.00 | 1422 | 56.88 | 1444 | 56.00 | 1422 | 56.00 | 1422 | 138.0 | 3505 | 30.0 | 760 | 22.3 | 567 |
