Description

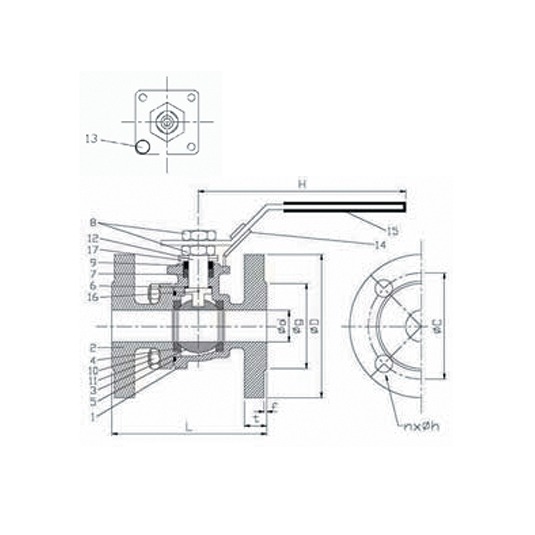

Material
| No. | Part | Material |
| 1 | Body | 1.4408 |
| 2 | Cap | 1.4408 |
| 3 | Ball | A316 |
| 4 | Body Seat | PTFE |
| 5 | Body Seal | PTFE |
| 6 | Thrust Washer | PTFE |
| 7 | Stem Packing | PTFE |
| 8 | Stem Nut | A2-70 |
| 9 | Gland Ring | A316 |
| 10 | Stud | A4-70 |
| 11 | Hex Nut | A4-70 |
| 12 | Stem | A316 |
| 13 | Stop Bolt | A304 |
| 14 | Locking Handle | A304 |
| 15 | Handle Sleeve | A304 |
| 16 | Anti StaticDevice | A316 |
| 17 | Belleville Disc | A301 |
Dimensions (mm) :
| DIN-PN40 | |||||||||||||
| DN | d | D | C | g | t | h | n | H | f1 | F4 | ISO-5211 | WT(kg) | TQ (Nm) |
| DN15 | 15 | 95 | 65 | 45 | 16 | 14 | 4 | 130 | 130 | 115 | F04 | 2.5 | 3 |
| DN20 | 20 | 105 | 75 | 58 | 18 | 14 | 4 | 130 | 150 | 120 | F04 | 3.5 | 6 |
| DN25 | 25 | 115 | 85 | 68 | 18 | 14 | 4 | 225 | 160 | 125 | F05 | 4.5 | 9.5 |
| DN32 | 32 | 140 | 100 | 78 | 18 | 18 | 4 | 225 | 180 | 130 | F05 | 7.0 | 10.5 |
| DN40 | 40 | 150 | 110 | 88 | 18 | 18 | 4 | 225 | 200 | 140 | F05 | 8.0 | 14 |
| DN50 | 50 | 165 | 125 | 102 | 20 | 18 | 4 | 333 | 230 | 150 | F07 | 12.0 | 35 |
| DIN-PN16 | |||||||||||||
| DN | d | D | C | g | t | h | n | H | f1 | F4 | ISO-5211 | WT(kg) | TQ (Nm) |
| DN65 | 65 | 185 | 145 | 122 | 18 | 18 | 4 | 333 | 290 | 170 | F07 | 14.5 | 66 |
| DN80 | 80 | 200 | 160 | 138 | 20 | 18 | 8 | 395 | 310 | 180 | F10 | 19.0 | 100 |
| DN100 | 100 | 220 | 180 | 158 | 20 | 18 | 8 | 395 | 350 | 190 | F10 | 32.0 | 120 |
