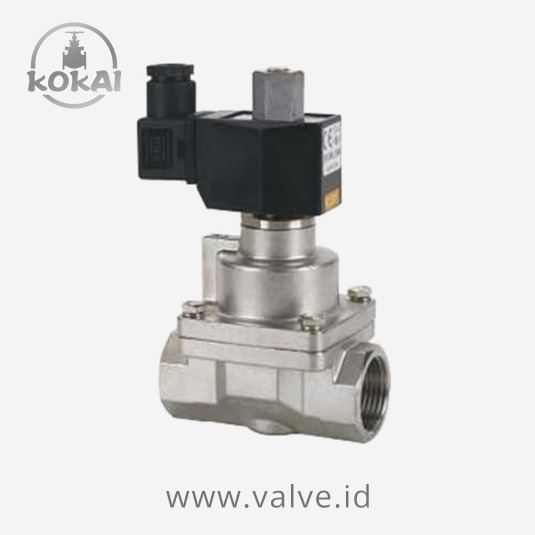

Description
Technical Specifications :
- Medium : Steam, Water, Hot Water, Air, Oil (below 20cst)
- Temperature : -5+180°C
- Mode for Action : Pilot Operated
- Pressure : Normally Closed (N/C) 16 Bar, Normally Open (N/O)10 Bar
- Body Material Stainless Steel
- Sealing Material : PTFE
- Protection Class : IP54
Options :
EPDM : Suitable to water, hot water, gas, freon, the MAX, 120°C. The coil is plastic coil, IP65
Viton V : Suitable to hot water, acid, alkali, chemical salt, oil and hydrocarbon: the MAX. 150C; The Coils is Plastic Coil, IP65
Parameters (N/C)
| Model | PS-15J | PS-20J | PS-25J | PS-32J | PS-40J | PS-50J | PS-25JF | PS-32JF | PS-40JF | PS-50F |
| G Connection | G1/2″ | G3/4″ | G1″ | G1 1/2″ | G1 1/4″ | G2″ | Flange 1″ | Flange 1/2″ | Flange 1 1/4″ | Flange 2″ |
| Orifice Size (mm) | 15 | 20 | 25 | 32 | 40 | 50 | 25 | 32 | 40 | 50 |
| Cv Valve (mm) | 4.5 | 7.6 | 12 | 22 | 30 | 48 | 12 | 22 | 30 | 48 |
| L (mm) | 75 | 75 | 92 | 110 | 122 | 92 | 135 | 140 | 148 | 182 |
| H (mm) | 135 | 142 | 150 | 150 | 155 | 150 | 190 | 201 | 210 | 230 |
| H1 (mm) | 112 | 117 | 138 | 138 | 140 | 138 | 135 | 135 | 137 | 150 |
| Medium Temperature ºC | -5÷180°C | |||||||||
| Pressure (Bar) | N/C:0.40÷16 N/O:0.4÷10 | |||||||||
| Power | 220v-230v AC/50-60Hz 22VA; 110V~120V AC/50-60Hz 19VA; DC24V 10W; DC19V 9W; Range: ±10% | |||||||||
Note : In case use for special pressure, voltages and so on , please state with your order.
