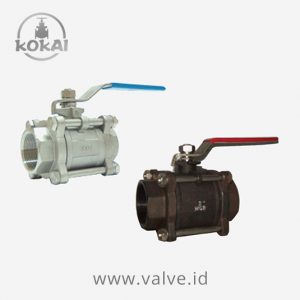

Ball Valve 1000 WOG
– Stainless Steel
– 3-PC Body
– Screwed End BSPT with Mounting Pad



Description

Materials

No. Part Materials
1 Body SUS304 SUS316
2 Cap SUS304 SUS316
3 Ball SUS304 SUS316
4 Ball Seat RPTFE RPTFE
5 Stem A276-316 A276-316
6 Body Gasket RPTFE RPTFE
7 Bolt SUS304 SUS304
8 Thrust Washer RPTFE RPTFE
9 Lock Device SUS304 SUS304
10 Handle SUS304 SUS304
11 Handle Sleeve Vinyl Plastic Vinyl Plastic
12 Stem Nut SUS304 SUS304
13 Stem Washer SUS304 SUS304
14 Gland Nut SUS304 SUS304
15 Stem Packing R-PTFE R-PTFE
16 Bolt Washer SUS304 SUS304
17 Bolt Nut SUS304 SUS304

Dimensions

Size L H W Weight (kg)
1/4 61.2 57.5 100.0 0.20
3/8 65.2 57.5 100.0 0.30
1/2 72.4 57.5 100.0 0.60
3/4 81.0 63.0 129.0 0.85
1 85.0 75.5 156.0 1.25
1 1/4 107.0 81.0 156.0 1.90
1 1/2 114.0 94.0 182.5 2.70
2 132.0 104.0 182.0 4.00
2 1/2 171.5 131.0 250.0 8.30
3 192.6 139.0. 250.0 16.90
4 224.0 173.0 280.0 33.70
