• Brass Gate Valve
  • Screwed
  • Pressure Rating : PN16
  • Working Medium : Water, Oil, Stem
  • UK End Connection : BS21
  • US End Connection : NPT

Description

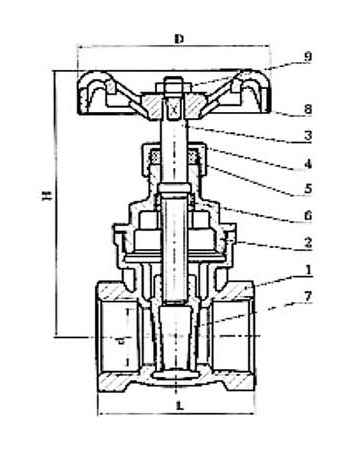

Materials :

No. Part Materials
1 Body Brass CW617N
2 Bonnet Brass CW617N
3 Stem Brass CW617N
4 Packing Nut Brass CW617N
5 Packing P.T.F.E
6 Stem Bush Brass CW617N
7 Handwheel Brass CW617N
8 Disc Cast-iron
9 Handwheel Nut Stainless Steel



Dimensions (in mm):

DN d L H D
15 12.7 43 72 55
20 17 45 77 55
25 21 52 87 60
32 25 55 95 60
40 32 66 110 72
50 38 76 124 80
