• Gate Valve
  • Stainless Steel
  • PN16
  • DIN2632
  • Face to Face DIN3204 F4
  • Flanges BS4504
  • Test EN1092-1:2000

Description

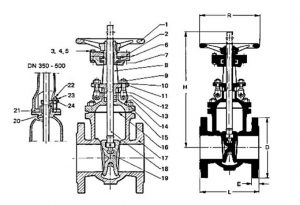

Materials :

No. Part Materials
1 Handwheel Nodular iron (DN 350 Steel)
2 Plate Stainless steel SS 2343
3 Hex. screw Stainless steel SS 2343
4 Washer Stainless steel
5 Hex. nut Stainless steel SS 2343
6 Bearing Steel
7 Stem nut Brass SS 5170
8 Bonnet Stainless steel EN 1.4408
9 Hex nut Stainless steel SS 2343
10 Washer Stainless steel
11 Gland Stainless steel SS 2343
12 Eye Bolt Stainless steel SS 2343
13 Stuffing box PTFE
14 Box ring PTFE / Glassfibre
15 Stud/Hex screw Stainless steel SS 2343
16 Bonnet gasket Reinforced graphite
17 Body Cast Stainless steel EN 1.4408
18 Stem Cast stainless steel SS 2324
19 Wedge Cast stainless steel SS 2324
20 Bonnet Cast Stainless steel EN 1.4408
21 Yoke bonnet Cast Stainless steel EN 1.4408
22 Stud Stainless steel SS 2343
23 Hex. nut Stainless steel SS 2343
24 Washer Stainless steel



Dimension & Weight

DN Dimensions in mm Number of
Wheel Turns
Mass in
Kilograms
D E L H* R
50 165 18 150 375 275 16 16
65 185 18 170 375 275 16 18
80 200 20 180 440 275 23 23
100 220 20 190 525 275 28 30
125 250 22 200 715 275 39 46
150 285 22 210 715 275 39 52
200 340 24 230 910 325 43 87
250 405 26 250 1100 325 53 117
300 460 28 270 1290 325 63 168
350 520 30 290 1545 630 62 220
400 580 32 310 1730 710 69 318
500 715 32 350 2070 710 74 500
