• Gate Valve
  • Bronze
  • Screwed
  • PN20
  • “SBM” Bronze wedge gate valve
  • Inside Crew
  • Non-Rising Stem
  • Integral Seats
  • Screwed Female end (BSP)
  • Handwheel Operated

Description

Materials :

Components Material
Body, Bonnet, Wedge, Gland & Gland Nut Leaded Tin Bronze
Stem Forged Brass
Gland Packing Asbestos
Handwheel Handwheel
Screw & Washer for Handwheel Mild Steel

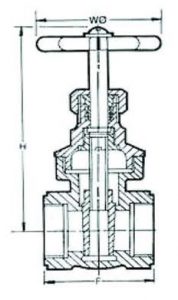

Dimensions (in mm) :

DN F±1.5 H W
8 43 90 50
10 43 95 50
15 45 85 50
20 51 100 60
25 64 115 65
32 66 130 80
40 70 155 80
50 76 195 90
65 95 210 105
80 112 260 115
100 127 305 145
