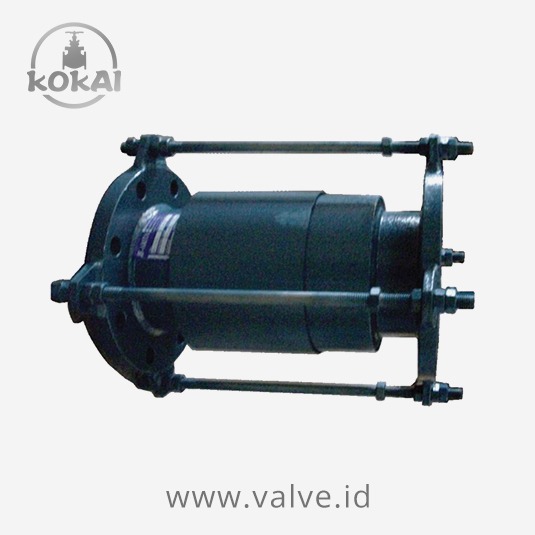

Expansion Joint SUS 304, Flanged End Type 1000 | PT. Kokai Indo Abadi

Expansion Joint SUS 304
Flanged End
Type 1000

Category: Uncategorized Tags: Expansion Joint Flanged End, Expansion Joint SUS 304, Flanged End Type 1000, Jual Expansion Joint

Description

Description

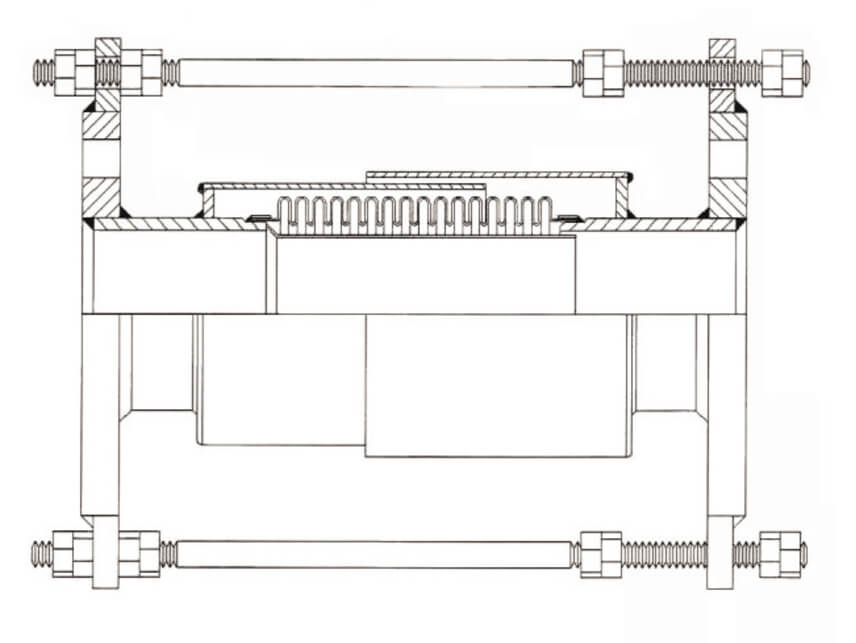

Construction

No.	Part	1000	1000H	Materials
1	Bellows	O	O	SUS304/SUS316
2	Internal sleeve	O	O	SUS304/SUS316
3	External Cover	O	O	SS400/SUS304
4	Tube End	O	O	STPG-38/SUS304/SUS316
5	Flange	O	O	SS400/SUS304/SUS316
6	Limit Rods	O	O	525C/SUS304

Specifications

Nominal Bore		Total Length		Bellows					Axial Movement		Working Pressure				Axial Spring Rate		Effective Area				wt (kg)
Nominal Bore		Total Length		O.D.		CORR.	PLY		Axial Movement		1000		1000H		1000	1000H	1000		1000H		wt (kg)
mm	Inch	mm	Inch	mm	Inch	No.	1000	1000h	mm	Inch	Bar	Psi	Bar	Psi	N/mm	N/mm	cm²	Inch²	cm²	Inch²	PN16
32	1 1/4	400	15.8	48.5	1.91	36	1	2	50	2	10	145	25	363	17.63	19.01	13.2	2.0	13.8	2.1	–
40	1 1/2	400	15.8	58.5	2.30	32	1	2	50	2	10	145	25	363	22.44	28.91	20.2	3.1	20.2	3.1	–
50	2	400	15.8	74.0	2.91	24	1	2	50	2	10	145	25	363	18.42	44.1	32.8	5.1	32.1	5.0	–
65	2 1/2	400	15.8	91.0	3.58	20	1	2	50	2	10	145	25	363	45.37	89.57	49.6	7.7	49.1	7.6	–
80	3	400	15.8	105.0	4.13	20	1	2	50	2	10	145	25	363	45.08	81.34	67.8	10.5	67.4	10.4	–
100	4	400	15.8	123.0	5.20	16	1	2	50	2	10	145	25	363	47.82	145.73	108.0	16.7	109	16.9	–
125	5	400	15.8	163.0	6.42	15	1	2	50	2	10	145	25	363	84.87	160.72	25.8	25.8	167	25.9	–
150	6	400	15.8	194.0	7.64	14	1	2	50	2	10	145	25	363	78.99	192.73	232	36.0	239	37.1	–
200	8	400	15.8	252.0	9.92	13	1	2	50	2	10	145	25	363	136.42	263.52	394	61.1	421	65.2	31
250	10	400	15.8	315.0	12.4	12	1	2	50	2	10	145	25	363	179.63	427.97	590	91.4	665	103.0	40
300	12	400	15.8	366.0	14.4	12	1	2	50	2	10	145	25	363	183.95	498.62	830	129	925	143	–
