Description

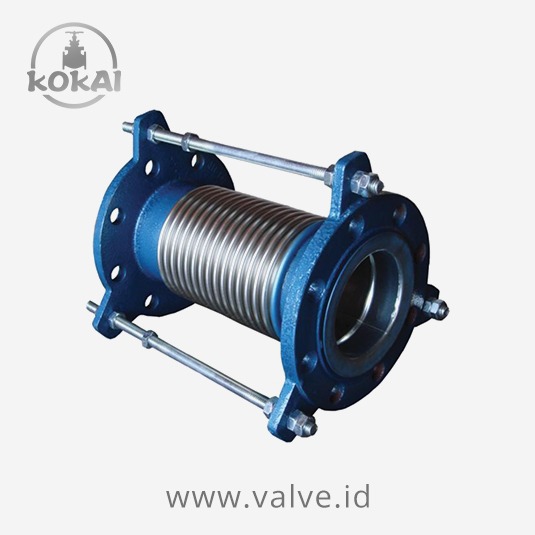

Construction :
| No. | Part | 150N | 150S | 150SG | Materials |
| 1 | Bellows | O | O | O | SUS304/316 |
| 2 | Internal Sleeve | O | O | SUS304/316 | |
| 3 | Flange | O | O | O | FCD 400 |
| 4 | Limit Rods | O | S25C/SS304 |
Specifications :
| Normal Bore | Total Length | Bellows | PLY | AxialMovement | Working Pressure | Axial Sprint Rate | Effective Area | Weight | |||||||
| O.D. | CORR. | ||||||||||||||
| mm | inch | mm | inch | mm | inch | NO | NO | mm | Inch | bar | Psi | N/mm | cm² | Inch² | PN16 |
| 40 | 1 1/2 | 300 | 11.81 | 58.0 | 2.36 | 32 | 1 | 50 | 2 | 10 | 145.2 | 22.44 | 20.2 | 3.1 | – |
| 50 | 2 | 300 | 11.81 | 74.0 | 3.07 | 24 | 1 | 50 | 2 | 10 | 145.2 | 18.42 | 32.8 | 5.1 | – |
| 65 | 2 1/2 | 300 | 11.81 | 90.0 | 2.36 | 20 | 1 | 50 | 2 | 10 | 145.2 | 45.37 | 49.6 | 7.7 | – |
| 80 | 3 | 300 | 11.81 | 104.0 | 3.07 | 20 | 1 | 50 | 2 | 10 | 145.2 | 45.08 | 67.8 | 10.5 | 9 |
| 100 | 4 | 300 | 11.81 | 130.0 | 3.62 | 16 | 1 | 50 | 2 | 10 | 145.2 | 47.82 | 108.0 | 16.7 | 10 |
| 125 | 5 | 300 | 11.81 | 160.0 | 4.25 | 15 | 1 | 50 | 2 | 10 | 145.2 | 84.87 | 166.5 | 25.8 | 16 |
| 150 | 6 | 300 | 11.81 | 188.0 | 5.20 | 14 | 1 | 50 | 2 | 10 | 145.2 | 78.99 | 232.4 | 36.0 | 20 |
| 200 | 8 | 300 | 11.81 | 242.0 | 6.42 | 13 | 1 | 50 | 2 | 10 | 145.2 | 136.42 | 394.1 | 61.1 | 29 |
| 250 | 10 | 300 | 11.81 | 292.0 | 7.48 | 12 | 1 | 50 | 2 | 10 | 145.2 | 179.63 | 589.7 | 91.4 | 43 |
| 300 | 12 | 300 | 11.81 | 344.0 | 9.57 | 12 | 1 | 50 | 2 | 10 | 145.2 | 183.95 | 829.6 | 128.6 | 50 |
